Description:

    Suitable for 600 series helicopter model. The motor is manufactured to a high standard by STEAM with superb CNC turning and milling composite processing technology. The motor is equipped with an efficient active heat sink, which brings ultra-low temperature and effectively improves the energy conversion efficiency.

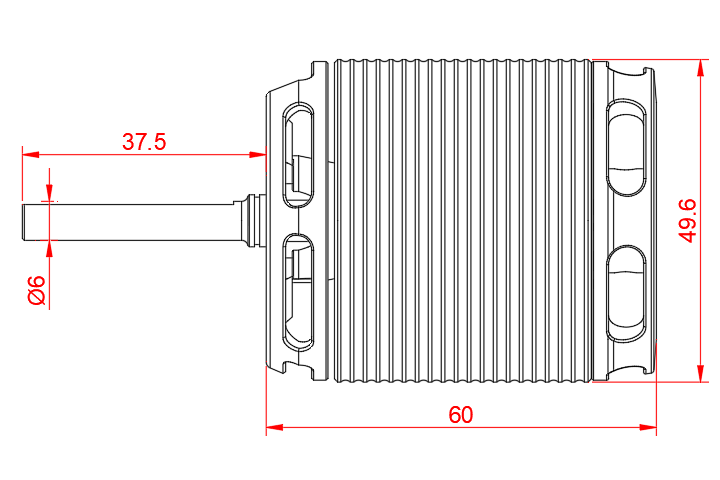

    Installation size:25mm/30mm

Parameter:

Stator Diameter 40mm

Stator Thickness 35mm

Motor KV 540kv

No-Load Current (lo/10v) 4.3A

Motor Resistance (RM) 18mΩ

Max Continuous Current 85A

Max Continuous Power 3500W

Weight 415g

Gear Shaft length 38mm

Outside Diameter 49.6mm

Shaft Diameter 6mm

Body Length 60mm

Overall Shaft Length 98mm

Max Peak Current 95A(2 seconds)

Max peak Power 4300W(2 seconds)

Motor Timing 5deg to 15deg

Max lipo cell 12S

Specification:

540KV Brushless motor×1

M3×8mm Socket screw×4

Φ5.5 Connected head×3

Heat shrinkable tube×3
