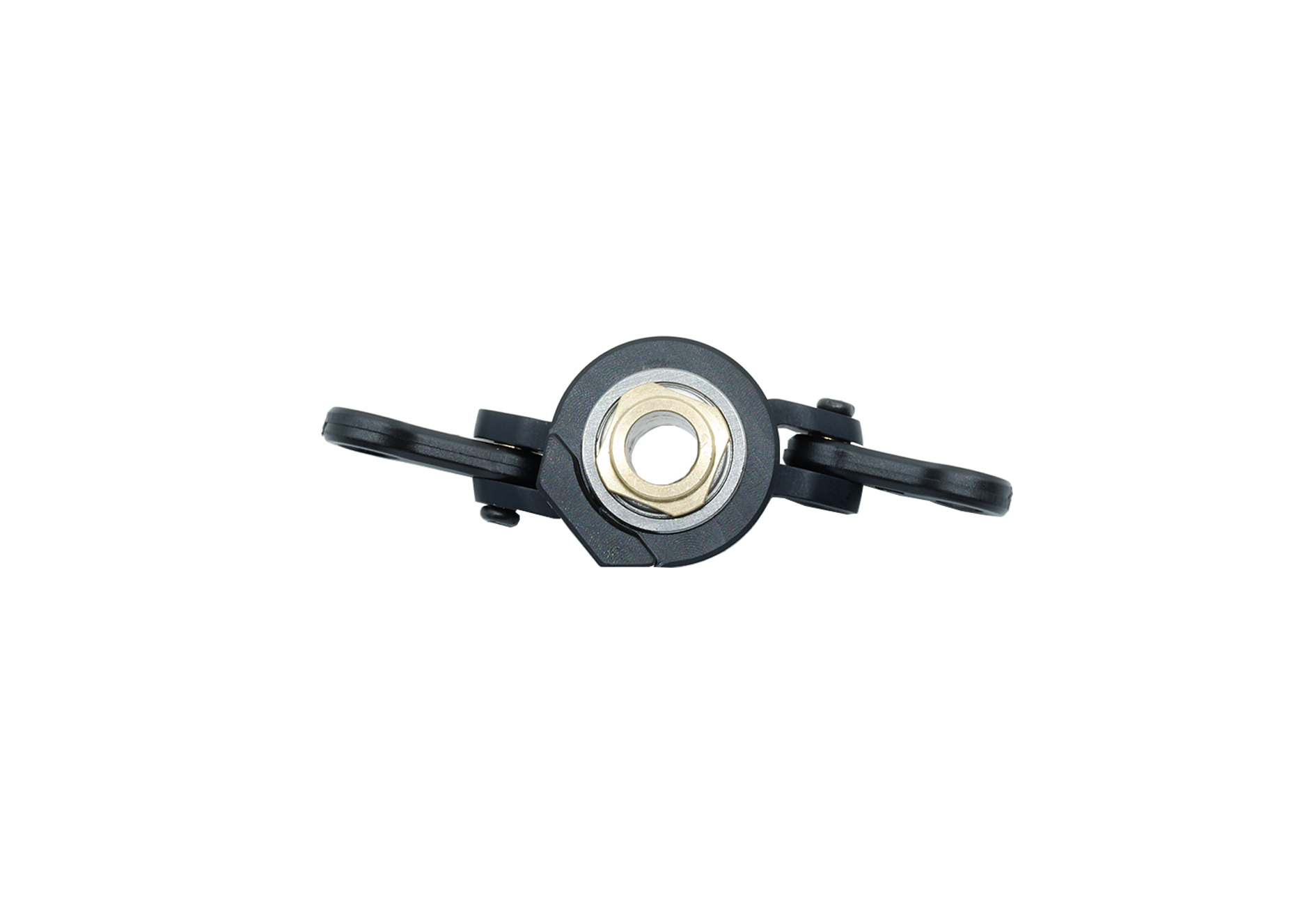

700 Metal Single Thrust Tail Control Set H7224
- Model: H7224
- Colour:
- Price: 79RMB
Product details
Description：
700 Metal Single Thrust Tail Control Set adopts 6061T6 aluminum alloy full CNC integrated molding processing. Suitable for Steam Armor 700V1, V2, V3 helicopter. This part adopts S-shaped twist design. When used with tail rotor holder set of oblique ball head, it can better make tail rotor Angle change more delicate and effectively improve flight stability. Note: This part needs to be used with the diagonal tail rotor holder set H7226.
相关产品编号：
700 Metal Single Thrust Tail Control Set H7224
700 Metal Single Thrust L Arm Control Set H7225
700 Single Thrust L Arm Housing H7228
700 T Type Tail Shaft H7226
700 Diagonal Linkage BallTail Rotor holder H7227
Specification：
Ring（19×8.0×3mm）×2
M2×8mm Collar Screw×2
Tail Shaft Copper Silde Bush（Φ6×Φ8×15mm）×1
S Type Metal Arm（30×12×11mm）×1
POM Positioning Ring（Φ8×Φ19×8mm）×1
Flange Bearing（Φ8×Φ12×3.5mm）×2
Metal Copper Bush（Φ2×Φ4×3mm）×2
