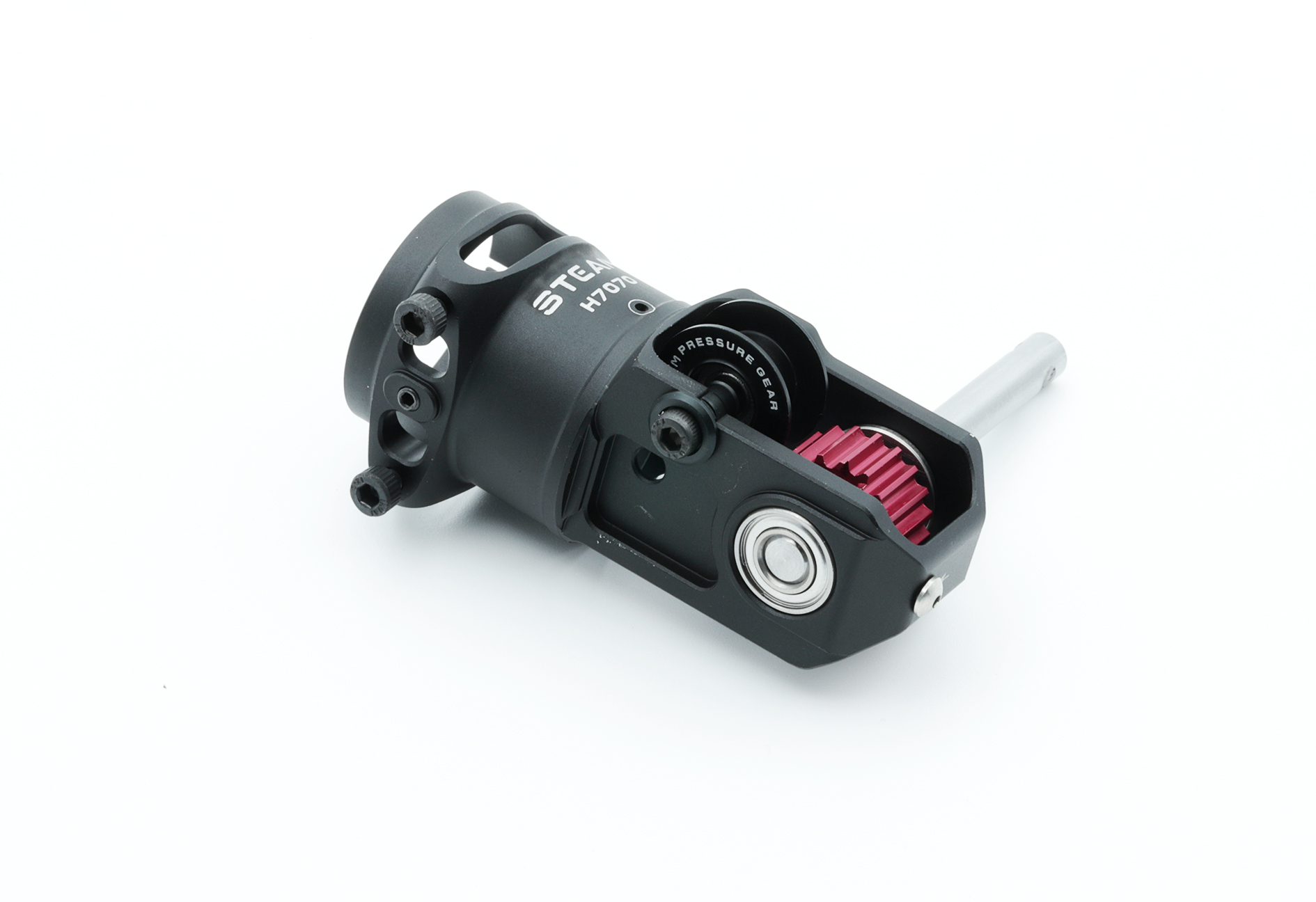

700 Metal Tail Gear Box H7070
- Model: H7070
- Colour:
- Price: 215RMB
Product details
Instruction：

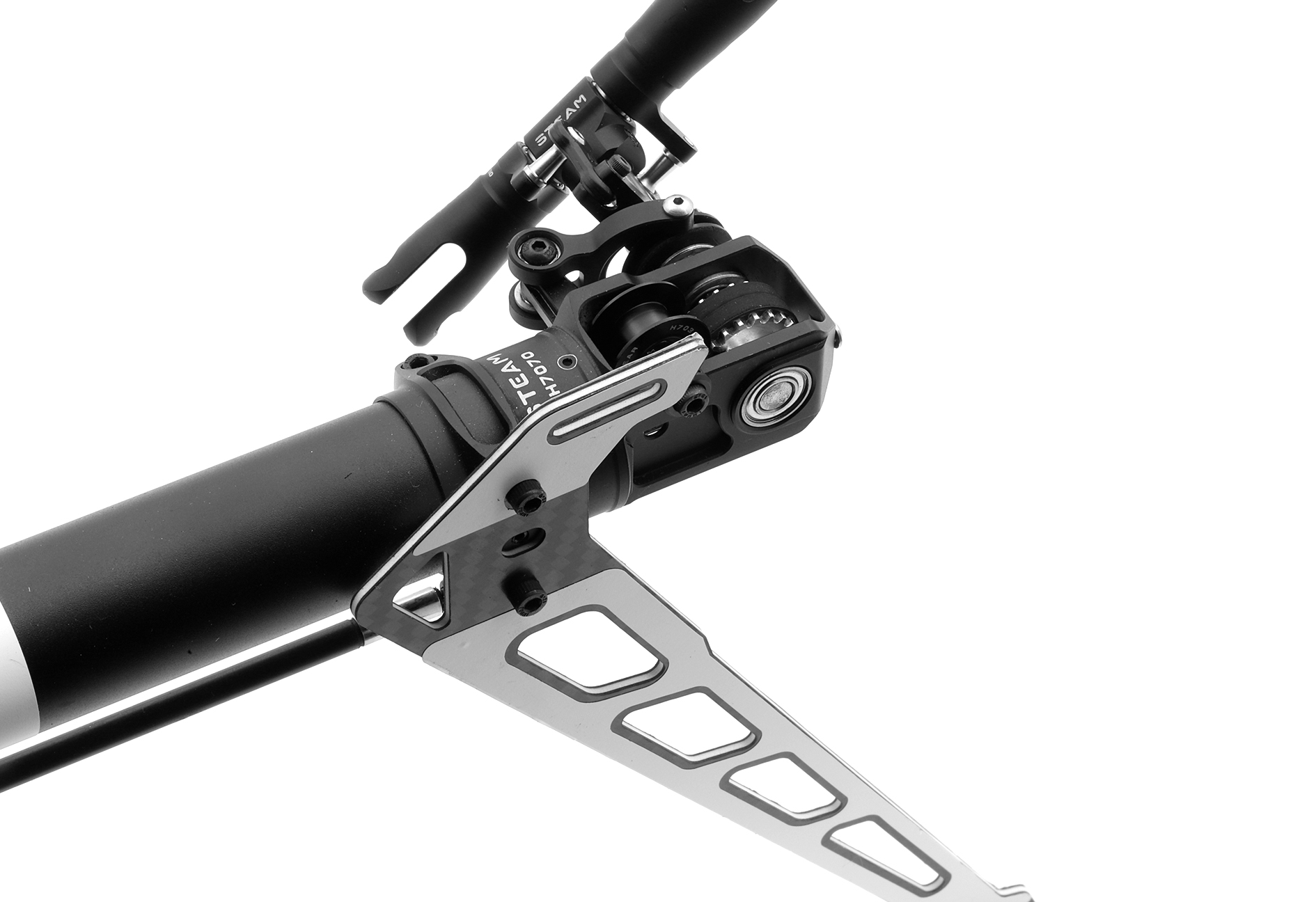

Suitable for Steam Armor 700 helicopter，6061T6 aluminum alloy high precision nc machining. Advantage of the integration of metal tail gear box is that the casing structure is strong, Tail shaft bearing position concentricity is high，可effectively reduce tail vibration. Double bearing anti-slip design.
Features：
1：lightweight design, weighing only 26 grams.
2：Liner position observation hole is designed。
3：press belt unit open installation。
4：installed with belt reverse limit screw。
Related product number：
700 Multi-function Wrench H7075
700 Tail Shaft H7068
700 Tail Shft Gear Set/20T H7079A
700 Tail Shft Gear Set/19T H7079B
700 Tail Press Belt Gear Set H7097
700 Metal Tail Gear Box H7070
Specification：
700 Metal tail gear box×1（Φ71.0×Φ40×31mm）
Flanged bearing×2（Φ6×Φ13×4.0mm）
M3×8mm Socket screw×3
M3×4mm Screw×1
M3×6mm Button head stepped screw×1
