Description：

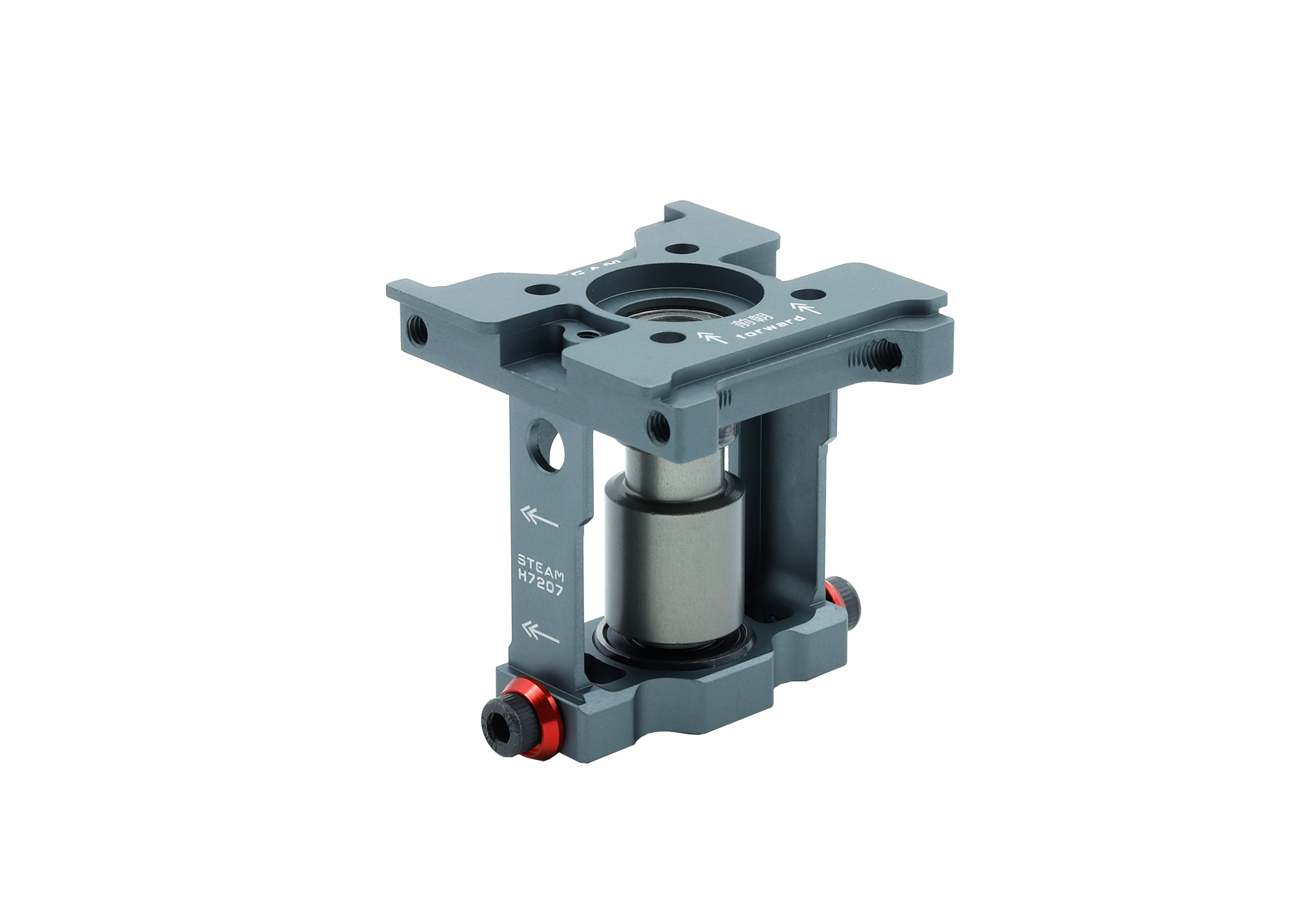

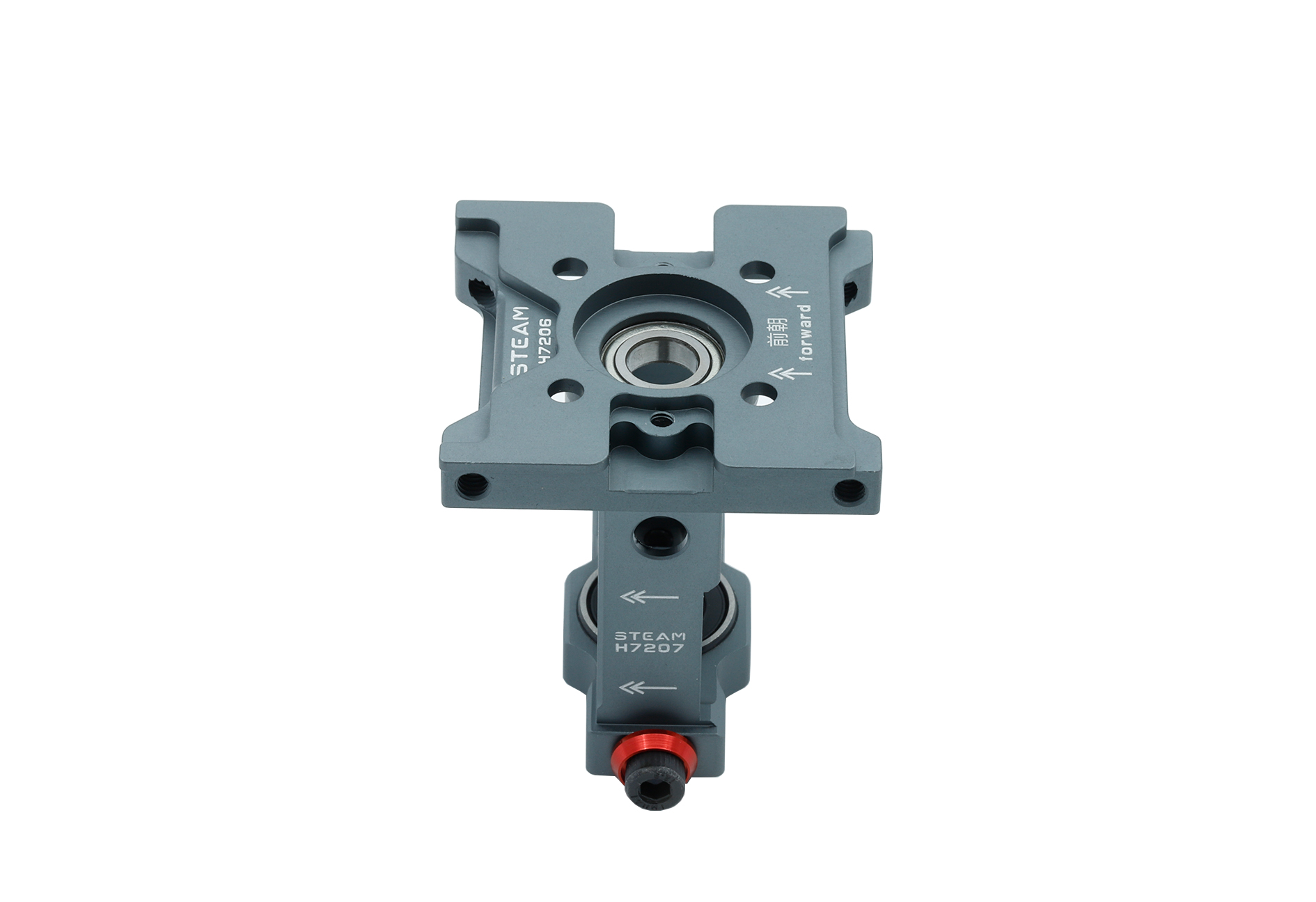

       Steam 700V2/V3 Double Bearing Motor Mount is suitable for Steam Armor 700V2/V3 helicopter model. 6061T6 aluminum alloy high precision NC machining. Reserve motor line outlet.The whole frame is at the edge of the carbon fiber board, which can keep the structural strength and achieve the lightest weight of the product. Effectively prevent motor gear on the motor shaft transverse force. Integrated design leads to lighter, more rational structures. Replace the new 700V2/V3 side plate, which can also be used for 700V1.

Related Product Number：
700V2/V3 Integrated Motor Mount H7207

700 V2/V3 Upper Fuselage Plate(L) H7124L

700 V2/V3 Upper Fuselage Plate(R) H712R
700 V2/V3 Lower Fuselage Plate(L) H7125L
700 V2/V3 Lower Fuselage Plate(R) H7125LR
700 V2/V3 Integrated Battery Slide Chute(L) H7205L
700 V2/V3 Integrated Battery Slide Chute(R) H7205R
700 V1/V2/V3 700 V1/V2/V3 Landing Gear Reinforced Carbon Fiber Plate H7127
700 V1/V2/V3 700 V1/V2/V3 Reinforced Vertical Tail  H7126
700 V2/V3 700 V2/V3 Integrated Slide Chute Battery Tray H7209
700V2 Canopy Fixing Column H7210
700  V3 Canopy Fixing Column H7211
700 V2/V3 Fuselage Side-plate Connector H7212
Steam Canopy Quick Disassembly/General Purpose H7208
700V2 Canopy H7213
700 V2/V3 Fuselage Side-plate screws H7215

Specification：
Metal Motor Mount×1（46.0×48.0×8.0mm）
Third Bearing Mount×1（42.5×42.0×22.0mm）
High-speed Bearing×1（Φ8.0×Φ16.0×4mm）
M3×5.8MM Step Screw×2
M4 Spacer×2
M4.0×10mm Socket Screw×4
M4.0×8mm Socket Screw×2
