700 Tail Drive Main Gear Set 95T H7050
- Model: H7050
- Colour:
- Price: 129RMB
Product details
Description：

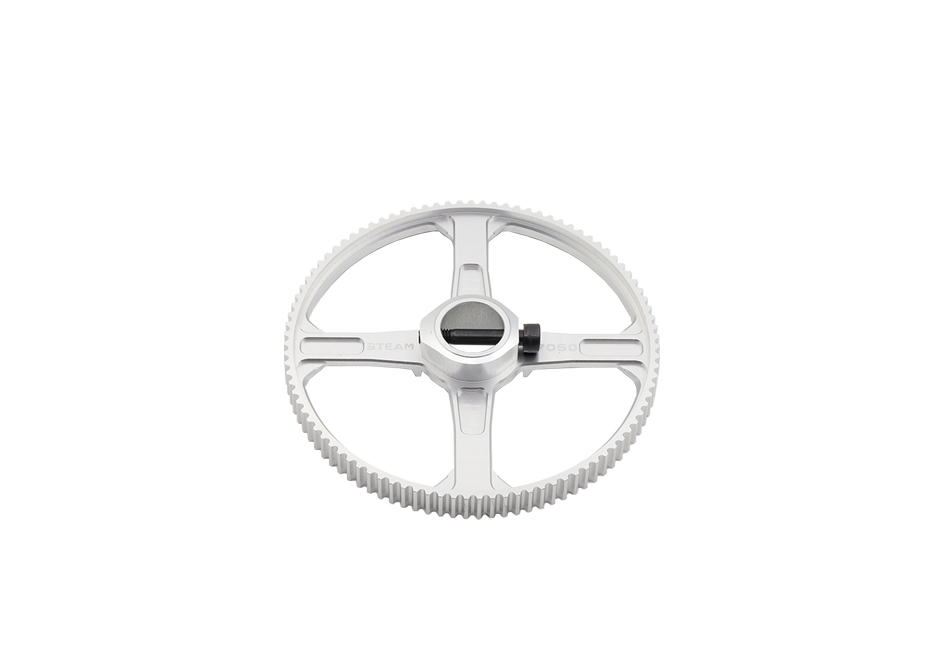

700 Tail Drive Main Gear Set 95T is suitable for Steam Armor 700 Helicopter tail drive synchronized gear. Adopt 6061T6 aluminum alloy full CNC processing. High precision CNC hobbing, overall enhance the mortise and tenon design of large frame, eliminate the design structure of spacer. With 19T/20T/ tail gear, it can better correspond to different tail-locking effects. ratios of 19T and 20T tail-gear are respectively as follows:5.0/4.75.
Related Product Number：
700 Tail Drive Main Gear Set 95T H7050
700 Tail Shaft Gear Set/20T H7079A
700 Tail Shaft Gear Set/19T H7079B
Specification：
Metal Tail Drive Main Gear×1（Φ15.00×Φ90×7.0mm）
Upper Synchronous Gear Cover Ring×1（Φ80.5×Φ96.5×5mm）
Lower Synchronous Gear Cover Ring×1（Φ80.5×Φ96.5×6.5mm）
M4.0×25.0mm Socket Screw×1
M2.0×6mm Countersunk Screw×8
