Description:

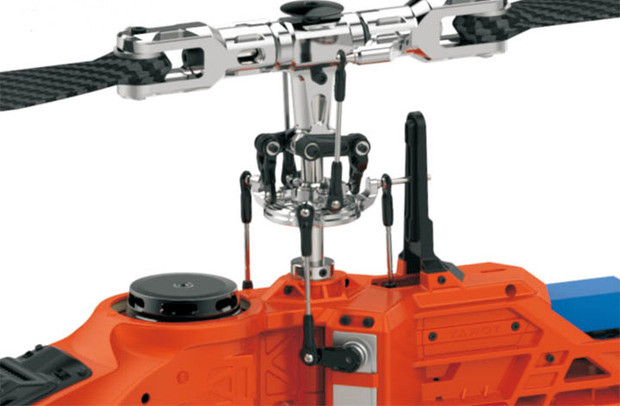

    Suitable for MK550/MK600 helicopter model. Installation specification is Φ5mm carbon fiber tail support rod and Φ5.85mm metal linkage ball. Various colors of ball link can meet your demand. Structural design can effectively improve flight stability, satisfy flight load requirement.

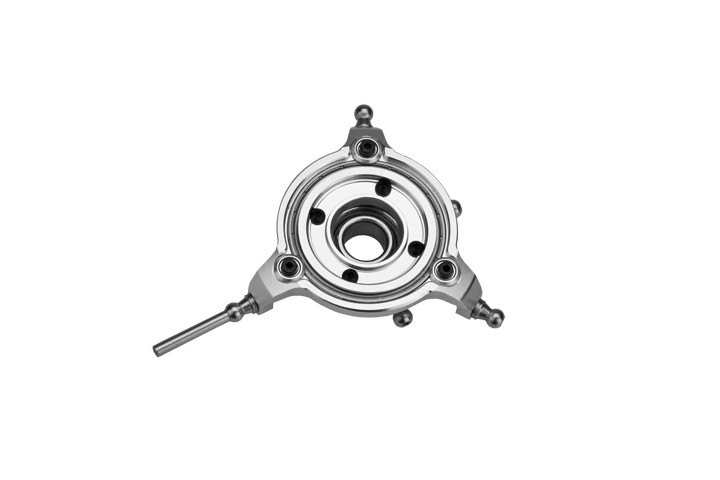

    The cross disc adopts a patented design with no dummy position structure and independent fixing method. This patented design can reduce assembly clearance, leaving only the dummy position sloshing of the bearing itself. The use of this structure can be very convenient repair, disassembly, maintenance of the swashplate.

    Japanese NSK fish-eye bearings are adopted, all linkage ball threads are increased to 3.0mm to avoid the original M2 linkage ball easy to slip and damage problems, in order to meet the current mainframe load requirements on the swashplate.

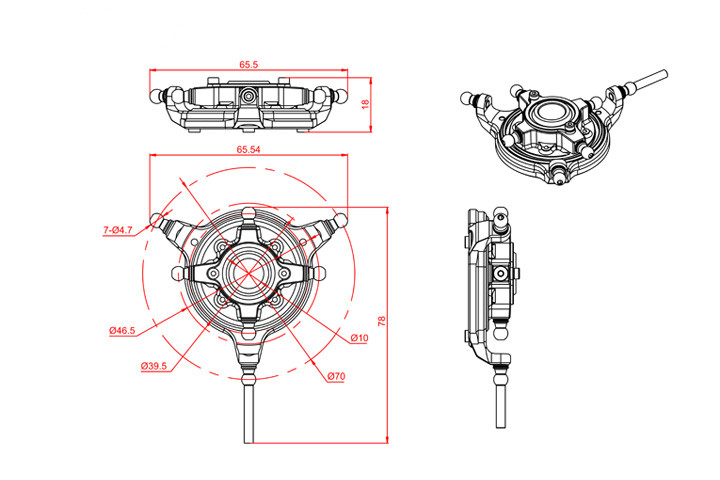

Specification:

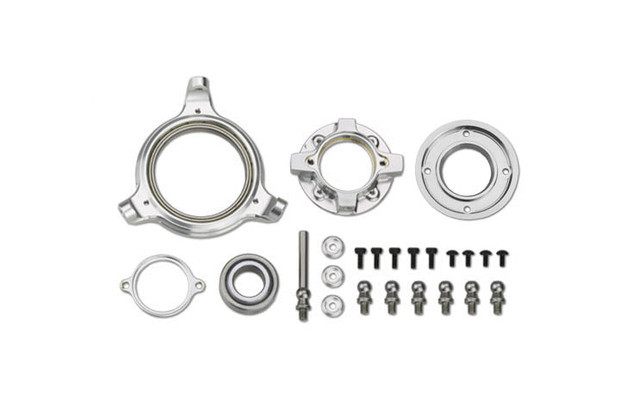

Swashplate set outer plate×1 (Φ60.4×Φ30×14mm)  17g

Swashplate set inner plate×1 (Φ36.7×17Φ×10mm)  5.6g

Swashplate lower bearing housing×1 (32.5Φ×16.5Φ×3mm) 2.7g

Swashplate outer plate bearing×1 (Φ37×Φ30×4mm)

Fisheye bearing×1 10mm 10.7g

Fisheye bearing cover×1 (27Φ×17Φ×1.8mm）0.4g

M3×4mm Long linkage ball×1 (Φ4.7×29.5mm) 1.8g

M3×4mm Linkage ball×1 (Φ4.7×10.6mm) 0.85g

M2×5mm Socket screw×5

M2×4mm Socket button head screw×4

M2 Metal washer ×3

国家知识产权已授予温州新越科创有限公司此产品专利权，任何单位或个人未经持有者授权许可，制造、仿造、使用、销售此产品将会面临专利侵权诉讼。

The state intellectual property has awarded XINYUE Technology Innovation co.,ltd the patent. Any units or individual without  the license holder manufacture, copy, use or sell the product will be in patent lawsuit.
