Steam 550/600 Main Gear Center Mount MK6024
- Model: MK6024
- Colour:
- Price: 110RMB
Product details
Description:
Suitable for MK550/MK600 helicopter model. Adopt 6061-T6 aluminum alloy material. 3D integrated molding, with high precision structural strength.
Main gear center mount adopts Customized 10MM wedge type unidirectional bearing. Torque value reaches 22NM. Satisfy flight load bearing requirements, effectively improve fight stability and flight control.
Specification:

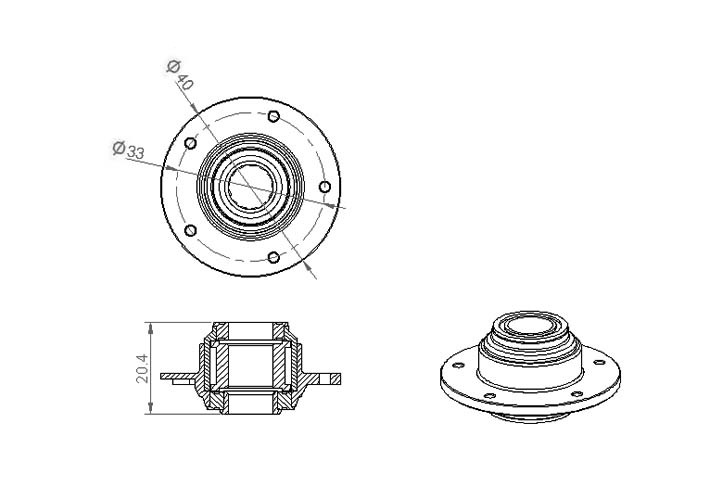

Main gear center mount×1 (Φ40×14mm) 7.5g
Wedge block bearing cylinder liner×1 (Φ20.5×14.5mm)8.6g
Wedge bearing inner ring×1 (Φ17.8×11.0mm)8.0g
Flange bearing×1 (Φ12×Φ18×4mm)3.1g
Flange bearing×1 (Φ10×Φ15×4mm)2.8g
Copper ring×1 (Φ13.5×Φ10×5mm)1.65g
M2.5×5mm Socket screw×5
