MK550/MK600 Parts
Current Position: Home >> Product >> 550/600 Parts >> MK550/MK600 Parts

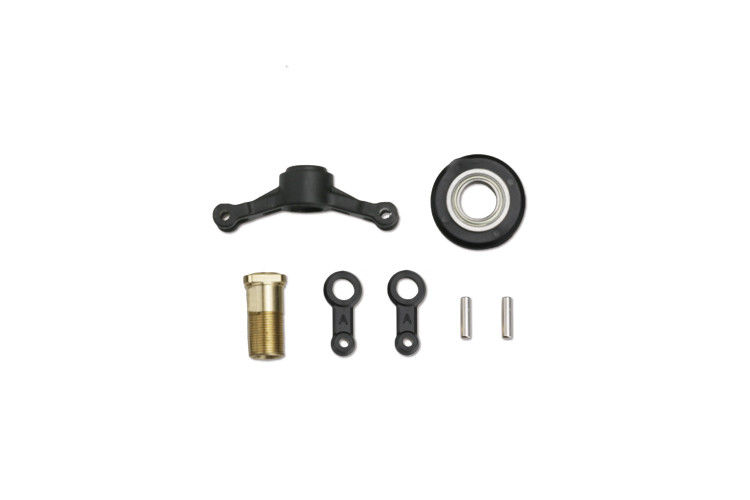

 Steam 550/600 Double Thrust Tail Control Set MK6015B

Steam 550/600 Double Thrust Tail Control Set MK6015B

  • Model: MK6015B
  • Colour:
  • Price: 31RMB
Product details




Description:

    Suitable for MK550/MK600 helicopter model. Streamlined design, mortise and tenon design. Effectively improve structural strength without increasing weight. (Caution: This part needs to use with MK550/MK600 metal double thrust L arm MK6015A, and you cannot use it with MK550/MK600 metal tail rotor holder set MK6078. )


Related product number:

550/600 Metal double thrust L arm MK6015A

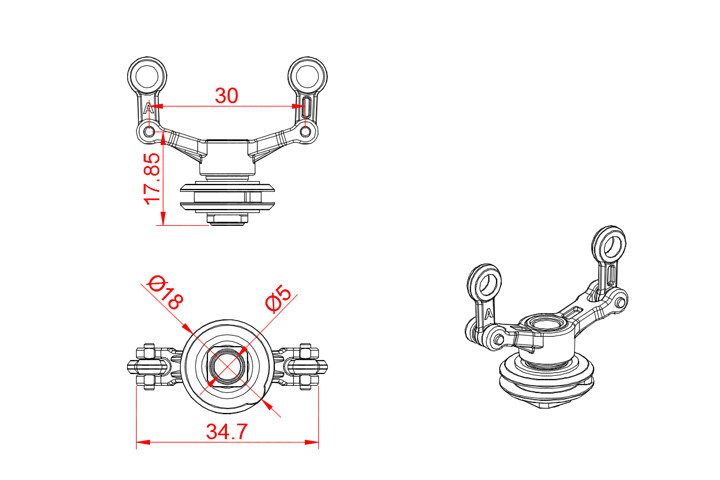

Specification:

8 type ring(16.5×7.5×3mm)

Stainless pin(Φ2×8mm)×2

Tail shaft copper slide bush(Φ5×Φ7×Φ8×16mm)×1

T type control arm(M5×34.7×10.8mm)×1

O type positioning ring(Φ7×Φ18×5mm)×1

Flange bearing(Φ7×11×2.5mm)×2
