Description:

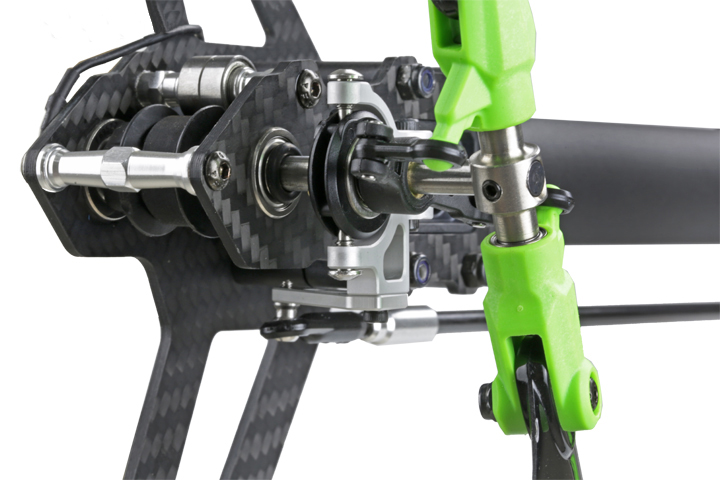

    Adopt 6061T6 aluminum alloy CNC molding processing. Suitable for MK550/MK600 helicopter model. T shaped reinforced structure. Mortise and tenon design. Effectively improve flight stability, satisfy flight load bearing requirements.（Caution: This part needs to use with MK550/MK600 double thrust tail control set MK6015B, or you can use with MK550/MK600 metal double thrust control set-upgrade part MK6015C.）

Related product number:

550/600 Double thrust tail control set MK6015B

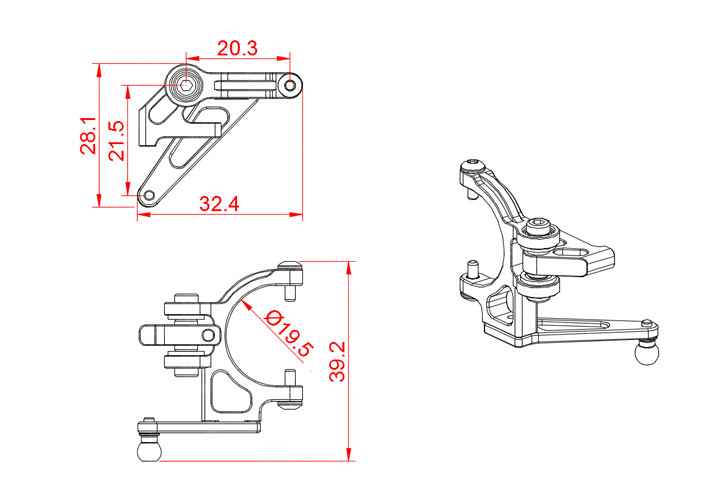

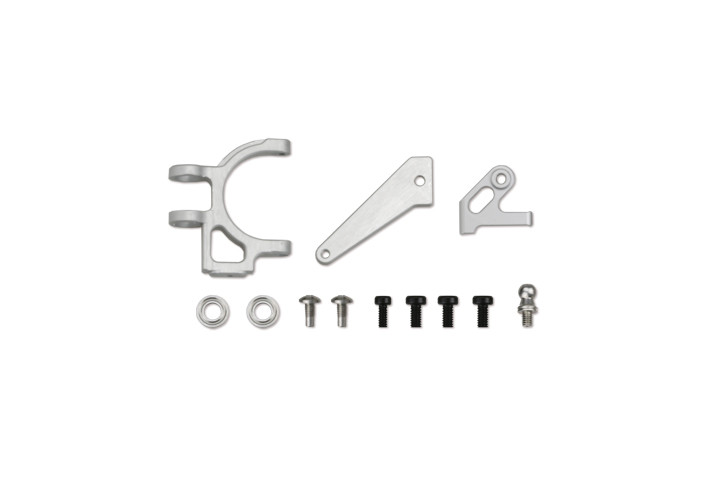

Specification:

Tail control housing×1（16×9×6mm）1.2g

U type housing×1（31×27×8.5mm）2.8g

Bearing×2(Φ2.5×Φ6×2.5mm)

M2.5×5mm Socket screw×2

M2×6mm Thread positioning pin×2

Metal L arm×1（34×11.5×2.5mm）1.05g

(Φ4.75×7.2mm)Linkage ball×1
